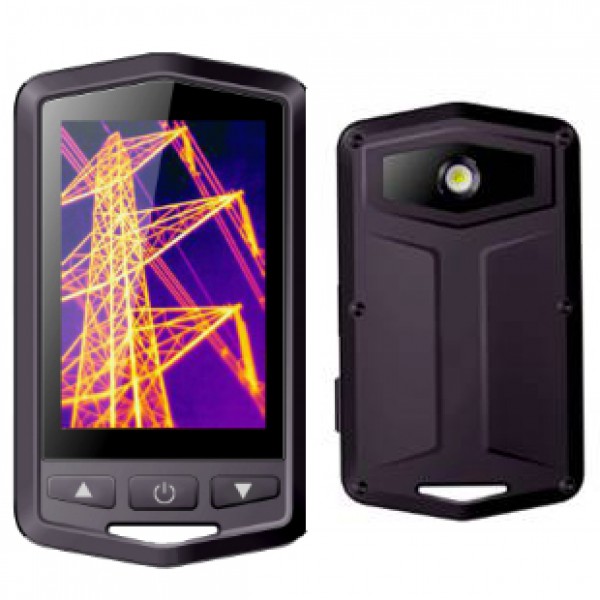

ATH1
●Architectural Problems
●Electronic industry ,mechanical inspection
●Researching system
●Automation application system
Features :
●Compact in size of only 125*72*16mm, small volume
●Quick start , measuring at any time .
●Central point temperature measuring and automatic tracking of highest / lowest temperature points.
●3.5-Inch large screen , auto rotation
●50-degree field of view for instant finding.
●USB 3.0 Type-C port for data transfer and recharging.
●Three-key operation mode for easy use even by green hand.
Item | Specification | |
Overview | Size of Screen | 3.5 inch |
Resolution of Screen | 480 * 320 | |
Images Stored | 600 | |
Image Format | BMP | |
Data/Recharging Port | USB3.0 Type-C | |
IR Temperature Measurement | Resolution of Sensor | 80 * 60 |
Measurement Precision | ±2℃ ~ ±2% | |
Measurement Range | -20 ~150℃ | |
Radiation Ratio | 0 ~ 0.95 adjustable | |
D:S | 15:1 | |
Thermal Sensitivity | <50mK @ f/1.0 | |
Wavelength Range | 8μm to 14μm | |
Temperature Measurement Function | Central point temperature measuring, automatic tracking of highest/lowest temperature points. | |
IR Image | Frame Frequency | 9Hz |
Angel of View | 50° * 38.6° | |
Palette | Iron red, rainbow, gray | |
Protection | Protection Grade | IP54 |
Miscellaneous | Battery Type | Rechargeable lithium battery |
Consecutive Operation Duration | ＞4 hours | |
Dimensions | 125 * 72 * 16mm | |
N.W | 170g | |
G.W | 420g | |
Package Include | Power Adapter, USB Cable, Wrist Strap, Quick Start Guide, Certificate Card, Warranty Card | |
Other Sensor | Direction sensor | |
Operating Temperature | 0℃ ~ 45℃ | |
Storage Temperature | ﹣20℃ ~ 55℃ | |
