ATB6

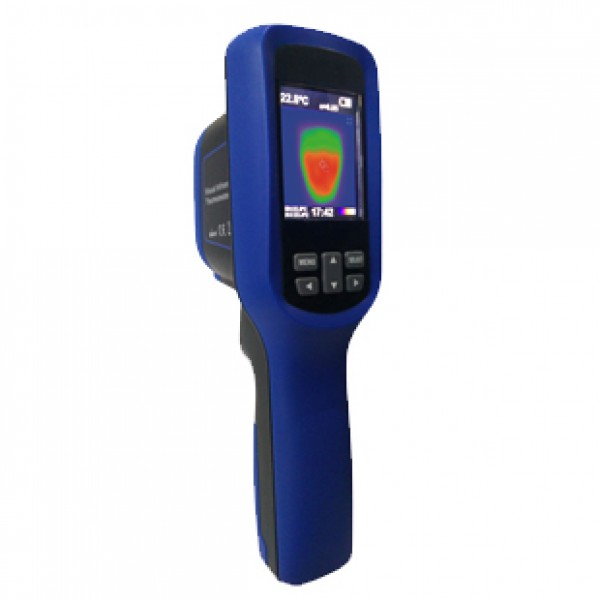

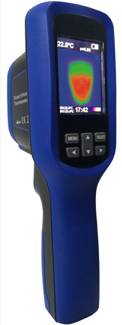

Hand held Thermal Imaging Camera
Features
- 2.4'' Digital Display Screen - Adjustable emissivity from 0.1 to1.0
- Units/date/time set - Selectable color palettes
- Visual/heat map image alignment - Image capture and image
- Led light allows the unit to be used in poor light - Auto power off

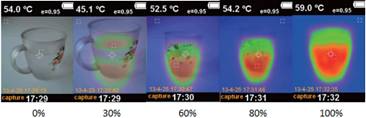

Adjust the mixed image from 0% to 100%
Description
Model | ATB6 |
Display | 2.4 TFT LCD, 80 x 60 pixels |
Infrared resolution | 60*60 (3600 pixels) |
Detector resolution | 300,000 pixels |
Field of view | 20°x 20° |
Minimum focus length | 0.5m |
Thermal sensitivity | 0.15ºC |
Emissivity | Adjustable 0.1~1.0 |
Temperature measurement range | -20ºC ~300ºC / -4ºF~ 572ºF |
Accuracy | ±2% or ±2.0ºC /3.6ºF of reading |
Wavelength range | 8~14um |
Image Frequency | 6HZ |
Focus model | Fixed focus |
Color palettes | Ironbow iridescence ,iridescence high contrast,Grayscale ,Grayscale inverted |
Vision option | 25% step infrared to visional to infrared and visional image |
Storage | SD card |
Image file formats | Bmp |
Operating Environment | -5 to 40°C (23 – 104°F), ≤ 80% Humidity |
Emissivity | 0.1 – 1.0 adjustable |
Batteries | Alkaline battery AA 1.5V*4 |
Battery life | 6 hours |
Size /weight | 223 x 88 x 65 mm / 305 g |
