KFD-30

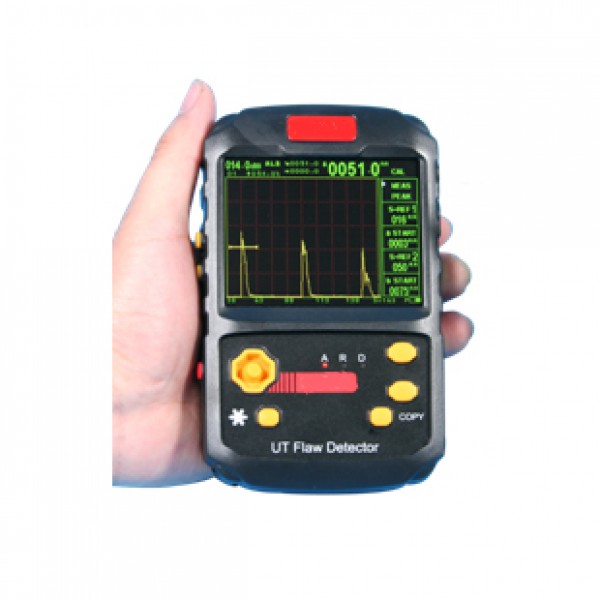

Mini Ultrasonic Flaw Detector KFD-30 is a hand-held model, both Flaw Detector and Thickness Gauge 2 in 1, Light weight. It provides users most of features of large models. Here please check the features below:
High resolution TFT color screen
● Auto zero calibration
● DAC and AWS curve
● Welding simulation map display, filled waveform trace display
● Freeze and peak memory mode
● Separately Gate A and Gate B setting with alarm
● Echo-echo for thru coating thickness measurement
● Peak or Flank measurement
● T-scan
● Display sound path value, surface distance and depth to flaw in angle beam ● inspections
● Large memory of 500 test report with A graph in flash memory
● Li battery, continuously work up to 9 hours
● Data transfer and print thru USB
Standard Delivery:
Main unit
Straight transducer
Angle transducer
Transducer cable
Hand-held belt and shoulder strap
Battery pack
AC adapter/Charger
Software
USB cable
Calibration certificate
Instruction manual
Carrying case
Technical Specification:
Measuring Range | 0.0-6000.0mm |
Sound Velocity | 3240m/s and 5920m/s are stored or input the new velocity from 1000-9999m/s |
Gain | 0-100dB, adjustable in step of 1/2/6/12 |
Frequency Range | 0.5-15MHz |
Probe delay | 0-365μs |
Test methods | Pulse echo mode (T-E) and Thru mode (E-E) |
Pulse Voltage | 300V negative spike |
Damping | 100Ω |
Echo Presentation | Full wave |
Unit | Mm or inch |
Horizontal Linearity Error | ＜0.1% |
Vertical Linearity Error | ＜3.0% |
Resolving power | ＞32db |
Sensitivity Leavings | ＞58db |
Dynamic range | ＞32db |
Gate | Height adjustment of zoom in and out |
DAC curve | Choice at any point |
Print Output | Waveform and data storage |
Display | 3.5” true color display 320╳240 |
Battery working time | 9 hours |
Operating Temperature | -20℃-+50℃ |
Power Supply | 4.2VDC, 220VAC |
Dimensions & Weight | 122╳82╳23.8mm, 430g including battery |
