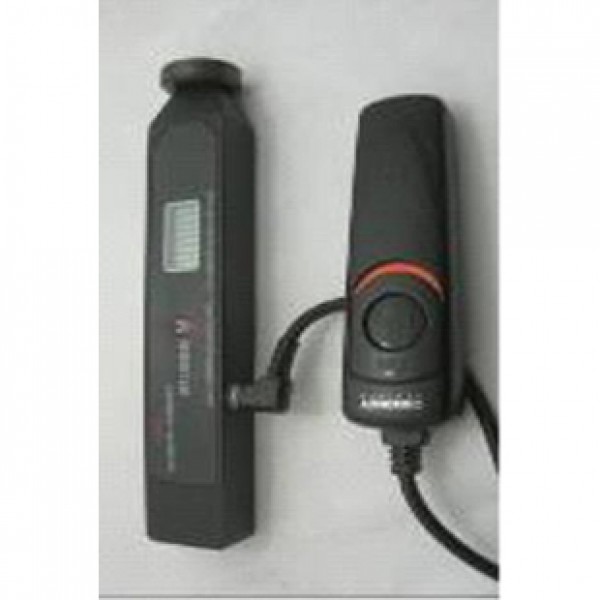

KV-130
Features:
1.Solid Metal Shell
2.Extremely reliable and potable, low cost instrument
specifically designed for on site maintenance in
your plant or workshop. It measures overall
vibration level by velocity RMS. Displacement
Peak_Peak & Acceleration Peak.
3.With one-button operation, holding function and
automatic power off.
4.With one-button operation, holding function and
automatic power off.
Specifications:
| Measurement Range | Velocity RMS (mm/s) 0.2 ~199.9mm/s Displacement Peak_Peak 1~1999 micron Acceleration Peak 0.2 ~180 m/s |
| Accuracy | 5 2 digits |
| Frequency response | Acceleration Peak:10~1000Hz(0.5dB 2 digits),1000～4000Hz(3dB2 digits) Velocity RMS: 10Hz < f < 1000Hz, 10% Displacement Peak_Peak: 10Hz～1000Hz (0.5dB 2 digits) |
| Display | 4 digits LCD, refresh interval about 0.5 second |
| Power supply | 1/2 AA, 3.6V, Operation Current 4-7mA |
| Battery capacity | >100 hours continuously or 4000 times measurement |
| Operation environment | Operation Temperature: 0 C~50 C; |
Dimension: | Relative humidity: < 85% (WxDxH) |
| Weight | 160mm x 25mm x 17mm 120g (include batteries) |
| Case Material | Aluminum |
Standard delivery:
Vibration meter
Long needle
Magnet base
Remove Control
Small pocket bag
User’s Manual
Battery (Inside meter)
Certificate
