Products

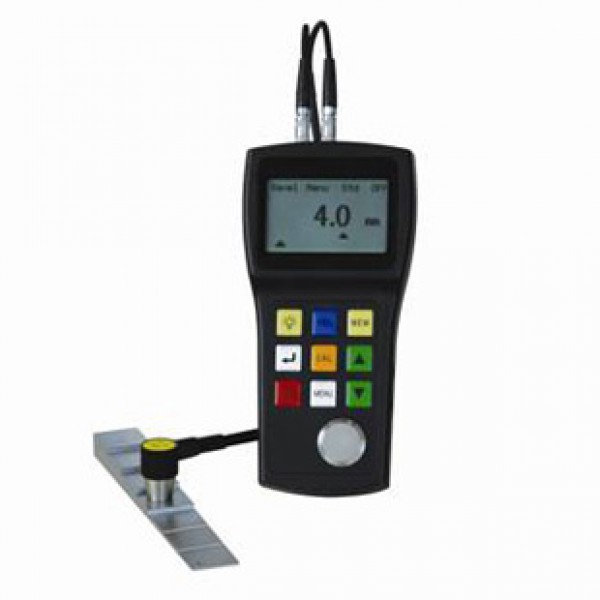

KT-300 / 310
Features:
AUTOMATIC SELF CALIBRATION
COUPLANT INDICATOR
AUTOMATIC POWER OFF DEVICE
HIGH-LOW LIMIT ALARM
LCD BRIGHTNESS ADJUST
LOW BATTERY INDICTOR
Technical Specifications:
KT-300 | KT-310 | |
Display Resolution | 0.1mm (or 0.01 inch) | 0.1mm/0.01mm or 0.01 inch /0.001inch |
Accuracy | ±(1%H +0.1)mm | ±(0.5%H + 0.01)mm |
Measuring Range | 0.8 - 300.0 mm depending on the probes (1.0 - 200.0 mm with Standard Probe within the package) | |
Display Frequency | 4Hz | |
Memory | Store up to 500 test values | |
Sound velocity | 1000-9999 m/s (0.0393-0.3936 inch/μs) | |
Display Type | 4 digital LCD with advanced backlight | |
Power Supply | 2 pcs. 1.5v AA standard Batteries | |
Working temperature | -0 ºC ~ +50 ºC | |
Dimension | 149 mm X 73 mm X 32 mm | |
Weight | 168g (main unit); 30g (standard probe) | |
Features:
AUTOMATIC SELF CALIBRATION
COUPLANT INDICATOR
AUTOMATIC POWER OFF DEVICE
HIGH-LOW LIMIT ALARM
LCD BRIGHTNESS ADJUST
LOW BATTERY INDICTOR
Technical Specific Features:
AUTOMATIC SELF CALIBRATION
COUPLANT INDICATOR
AUTOMATIC POWER OFF DEVICE
HIGH-LOW LIMIT ALARM
LCD BRIGHTNESS ADJUST
LOW BATTERY INDICTOR
Technical Specifications:
Probes | Frequency | Diameter | Measuring Range (steel) | Application |
PT-12 | 5 MHz | 12mm | 1.0-200mm | Standard Probe |
PT-08 | 5 MHz | 10mm | 0.8-100mm | Standard Probe |
PT-06 | 7.5 MHz | 7.6mm | 0.8-30.0mm | Miniature Probe |
ZT-12 | 2 MHz | 16.2mm | 4.0-300mm | Lowe frequency Probe |
PT-04 | 10 MHz | 5mm | 0.8-20.0mm | Minisize Probe |
GT-13 | 5 MHz | 14mm | 4.0-80.0mm | High Temperature probe |
