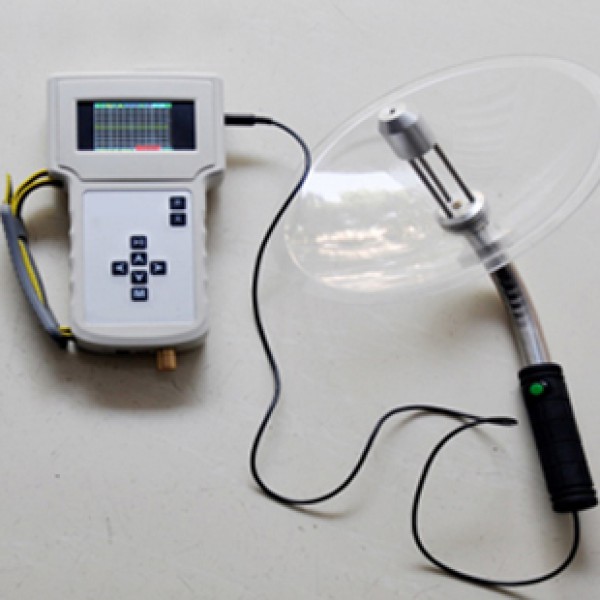

KUP-300

Ultrasonic PD measurement tool

TEV measurement :

Sensors:  Capacitive

Measurement Range  ：-5~ 60dB ，step length 1dB .

Resolution           ：  1dB

Accuracy             ：  ±1dB

Max Number of Pulses/Cycle  ； 655

Ultrasonic measurement :

KUP-300Measurement Range  : -11dB ~  68dB , step length 1 dB

Resolution :  1dB

Accuracy    :  ±1dB

Transducer Sensitivity :  -65dB（0dB = 1volt/µbar rms SPL）

Transducer Centre Frequency : 40kHz

Transducer Diameter :  16mm

Heterodyning Frequency  : 38.4kHz

Weight :  1kg (host) 0.5kg (sensors)     Size:  Host 245 * 132 * 45 mm

Power Supplies

Rated Voltage : 90 ~ 264 V

Frequency  : 47~ 63 Hz

Typical Operating Time : approx. 5 hours

Internal Batteries : Lithium-ion

Features

●  Ultrasound, TEV PD waveform and three-section indicative values (yellow, green, red ) are in the same interface

● Take dBmV as the unit and use Transient Earth Voltage （TEV）to detect the size of partial discharge.

●  Use colored LCD (Liquid Crystal Display), the display effect is more intuitive and more friendly
